Super Senyap
Menggunakan sistem muffler 2 tingkat khusus ditambah dengan bahan peredam suara, dan pembakaran E-TVCS, untuk mengurangi tingkat kebisingan suara secara signifikan

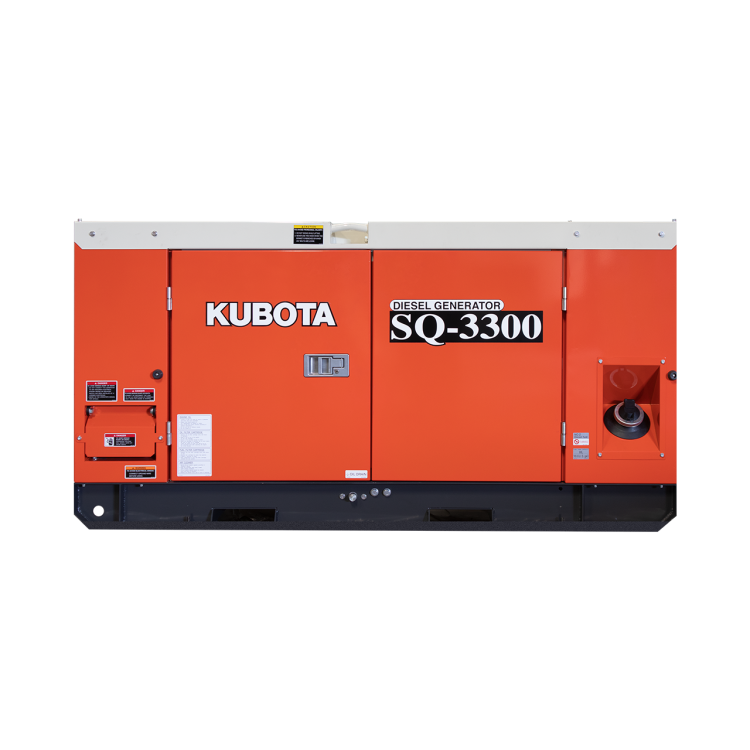

| MODEL | Unit | SQ-3300 | |
|---|---|---|---|
| Type | – | Revolving field, brushless AC generator | |
| Frequentcy | Hz | ||
| Standby Output | kVa [kW] | 33.0 [ 26.4 ] | |
| Prime Ouput | kVa [kW] | 30.0 [ 24.0 ] | |
| Voltage – Single Phase | V | 240 | |
| Voltage – Three Phase | V | 415 | |
| Amateur Connection | – | Start with neutral | |
| Phase / Wire | – | 3/12 | |
| Power Factor | – | 0.8 | |
| No. of Poles | – | ||
| Insulation | Class | ||
| Voltage Regulation | % | 1.5 [ No Load to full load ] | |
| Type of Coupling | – | Direct coupled | |
| AMPS | |||
| Single Phase 110V | A | – | – |
| Single Phase 220V | A | 36.4 x 3 | – |
| Single Phase 240V | A | – | 17.4 |
| Three Phase 380V | A | 45.6 | – |
| Three Phase 415V | A | – | 17.4 |
| NO. OF RECEPTACLES | |||
| 6 – 15 R | A | – | |
| TERMINAL | |||
| Terminal | – | Available | |
| KUBOTA DIESEL ENGINE | |||
| Type | – | Vertical, water-cooled, 4-cyled diesel engine | |
| Model | – | V3300 | |
| No. of Cylinders | – | 4 | |
| Bore x Stroke | mm [in.] | 98.0 x 110.0 | |
| Displacement | LL [cu. in.] | 3.318 [ 202.5 ] | |
| Engine Speed | rpm | ||
| Continues Rated Output | kW [HP] | 26.8 [ 35.9 ] | |
| Lubricant [ API classification ] | – | ||
| Oil Capacity | L [qts.] | 13.2 [ 14.0 ] | |
| Coolant Capacity | L [qts.] | 8.2 [ 8.7 ] | |
| Starting System | – | Electric – 12 volt DC | |
| SET | |||
| Fuel | Diesel fuel No.2 [ ASTM D975 ] | ||
| Fuel Consumption | |||
| at 100% Load | L/h [gal./h] | 7.7 [ 2.0 ] | |
| at 75% Load | L/h [gal./h] | 5.9 [ 1.6 ] | |
| at 50% Load | L/h [gal./h] | 4.3 [ 1.1 ] | |
| at 25% Load | L/h [gal./h] | 3.2 [ 0.8 ] | |
| Fuel Tank Capacity | L [gal./h] | 88.0 [ 18.0 ] | |
| Continous Operation Hours | |||
| at 100% Load | h | 8.8 | |
| at 75% Load | h | 11.5 | |
| at 50% Load | h | 15.8 | |
| at 25% Load | h | 21.3 | |
| Battery [Ah/5h] | – | 12V [ 90Ah ] | |
| Dimensions | mm | 1935 x 860 x 995 | |
| [ L x W x H ] | [in.] | [ 76.2 x 33.9 x 39.2 ] | |
| Approx. Net Weight | kg [lbs] | 880 [ 1940 ] | |
| Sound Level [ Full load at 7 m ] | dB [A] | 64 | |
| Emergency Stop System | in case of abnormal : Oil pressure, water temperature, fan belt broken, side cover & door open with running |
